spare parts for:

Absperrhahn links ohne Entlüftung

10 340-1

N 022 012

- inquire spare part or device -

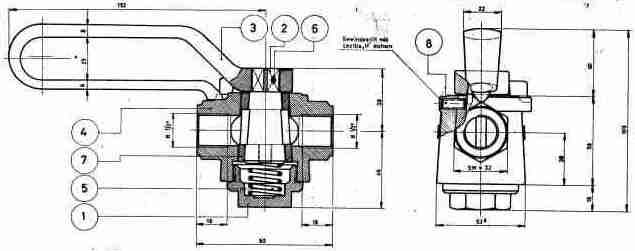

click on drawing number shows information about the spare part

pos.	count	name	drawing number
0	1	Gehäuse links 90°	10 345-1/l
0	1	Spannstift	SPS 4x32
0	1	Dichtring Ø33/40x1	W 4088 285 X
1	1	Kappenmutter	10 341
2	1	Durchlasshahn	10 342
3	1	Griff federnd	10 344
5	1	Druckfeder	10 346
7	1	Büchse	10 348
