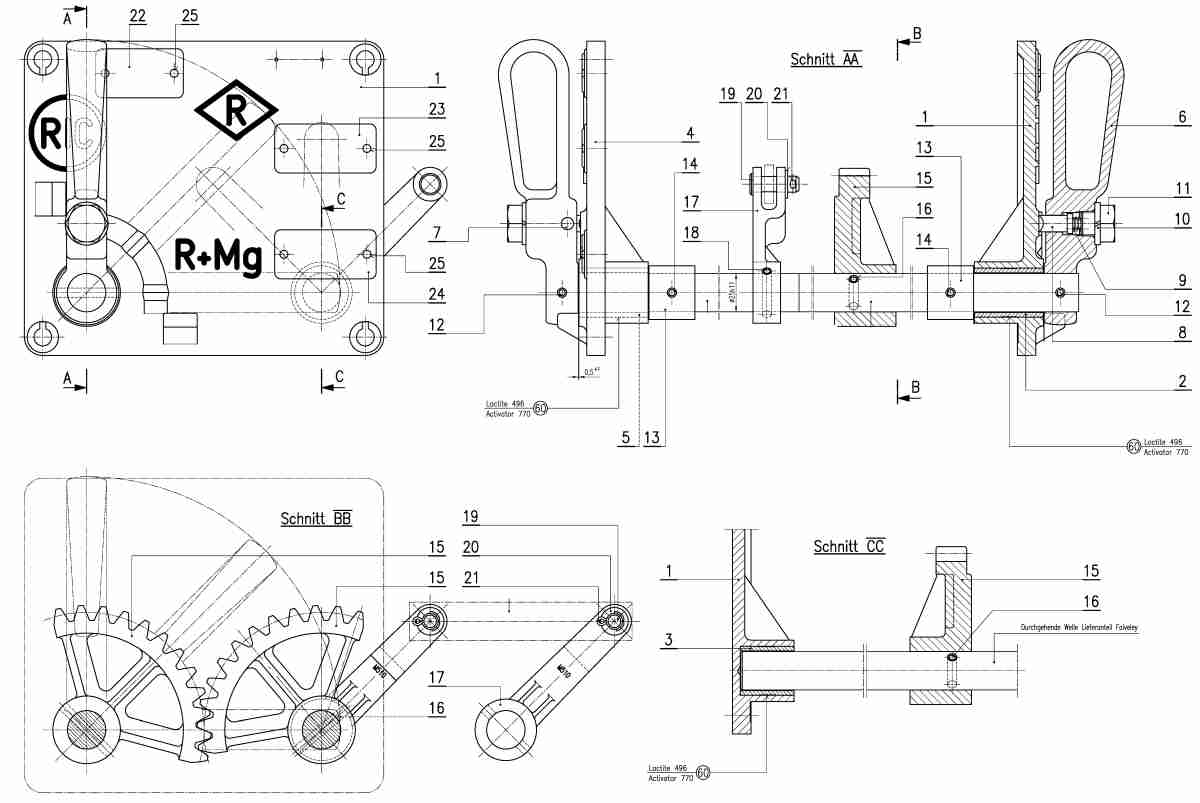

dispositivos de inversion
UV 90
N 027 083

- pedir pieza de repuesto -
Haga Click sobre el número para más información sobre la pieza de repuesto
| pos. | cant. | desig. | número |
|
|---|---|---|---|---|
| 0 | 2 | Schildlager RIC-R-R+Mg | UV 23-1 | |
| 0 | 2 | Zahnsegment | UV 55-5 | |
| 2 | 2 | Buchse | UV 23-12 | |
| 3 | 1 | Buchse | UV 23-13 | |
| 6 | 2 | Griff | UV 23-9 | |
| 7 | 2 | Zylinderstift | ZS Ø8h8x10 | |
| 8 | 2 | Rasterstift | UV 23-8 | |
| 9 | 2 | resorte | UV 3-3 | |
| 10 | 2 | anillo elástico | FR B16/vz | |
| 11 | 2 | Sechskantschraube | UV 3-4 | |
| 12 | 4 | pasador elástico | SPS 6x40 | |
| 13 | 2 | Stellring | 10 422 | |
| 14 | 2 | pasador elástico | SPS 6x36 | |
| 16 | 2 | Spannstift | SPS 6x45/A2 | |
| 17 | 2 | Gabelhebel | 10 413-3 | |
| 19 | 2 | Bolzen DIN 1434 | Ø10h11x30x26 | |
| 20 | 2 | Scheibe | SCH 10.5/DIN 433 | |
| 21 | 2 | chaveta | SP 3.2x20 |
