Bremszylinder UC 10 X15R8/303 u.703
3B 62 404
N 029 221
Klik na broj nacrta pokazuje informaciju za rezervni dio
| Pozicija | Kolicina | Naziv | Broj nacrta |
|
|---|---|---|---|---|
| 1 | O-Ring | OR |  | |
| 0 | 1 | Gewindeschutzpf.G1/2 | 10 196 |  |
| 0 | 1 | Kolbenmanschette 10" | 3A 61 442 |  |
| 0 | 1 | Einstellring | 3B 43 642 |  |
| 0 | 1 | Federteller | 3B 43 645 | |
| 0 | 1 | Zylinder 10" | 3B 62 406/2 | |
| 0 | 1 | Faltenbalg | 3B 64 150 |  |
| 0 | 1 | Gleitring | 4A 93 279/7 | |
| 0 | 1 | Kolbendeckel 10" | 4A 99 532 | |
| 0 | 1 | Axialnadellager | 4B 23 166 |  |
| 0 | 7 | Federscheibe | 4B 26 669 |  |
| 0 | 1 | Druckfeder | 4B 34 543 | |
| 0 | 1 | Hakenspringring | 4B 36 963 |  |
| 0 | 1 | Spindel | 4B 43 633/3 | |
| 0 | 1 | Scheibe | 4B 43 640 |  |
| 0 | 1 | Kugelhalter | 4B 43 736/1 |  |
| 0 | 1 | Kolben 10" | 4B 44 244 | |
| 0 | 1 | Druckfeder | 4B 44 474 | |
| 0 | 1 | Druckfeder | 4B 52 714 | |
| 0 | 1 | Verschlußschraube UC | 4B 57 488 |  |
| 0 | 1 | Lasche | 4B 61 381 |  |
| 0 | 1 | Dichtring | 4B 64 195/1 |  |
| 0 | 1 | Zylinderschraube | 4B 65 557/2 | |
| 0 | 1 | Lochschraube | 4B 66 529-5/H |  |
| 0 | 1 | Schutzkappe | 4B 75 404 |  |
| 0 | 1 | Nietstift | A 4h11x55 |  |
| 0 | 1 | Typenschild | E 100 070 |  |
| 0 | 1 | Schmierfett Esso-Beacon | Esso B2 | |
| 0 | 1 | Federring DIN 127 | FR B8 | |
| 0 | 2 | Halbrundkerbnagel 2x6 | KN 2x6 | |
| 0 | 1 | Schlauchschelle | SGL 260-280 | |
| 0 | 1 | Schlauchschelle | SGL 60-80 |  |
| 0 | 1 | Schlauchschelle | SGL 70-90 |  |
| 0 | 8 | Sechskantmutter M10 | SKM M10/DIN 934 |  |
| 0 | 8 | Sperrkantring | SKR 10 | |

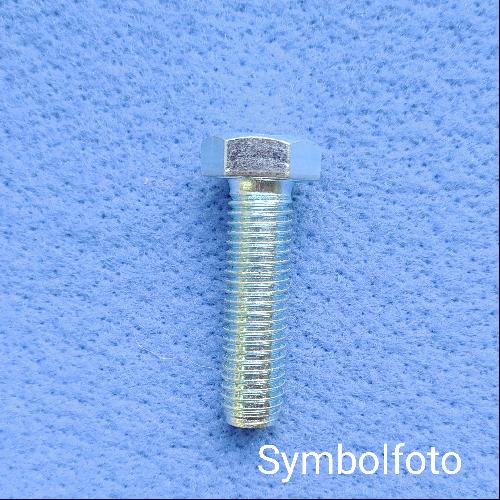

| 0 | 1 | Sechskantschr. Fe/Zn5cC | SKS M8x12 |  |
| 0 | 1 | Sprengring | SPR 30 |  |
| 0 | 2 | Sprengring SP 35 | SPR SP 35 | |
| 0 | 1 | Sprengring | SPR SP 58 |  |
| 0 | 1 | Schnorr Sicherungsscheibe | SSC 6 | |
| 0 | 1 | Klebeband 9mm breit | Tesaband 657 | |
| 1 | 1 | Kupplungshülse | 4B 34 378/1 | |
| 2 | 1 | Mutter UC | 4B 34 379 |  |
| 2 | 1 | Kolben 10" | 4B 35 980 | |
| 3 | 1 | Führung UC | 3B 34 386 | |

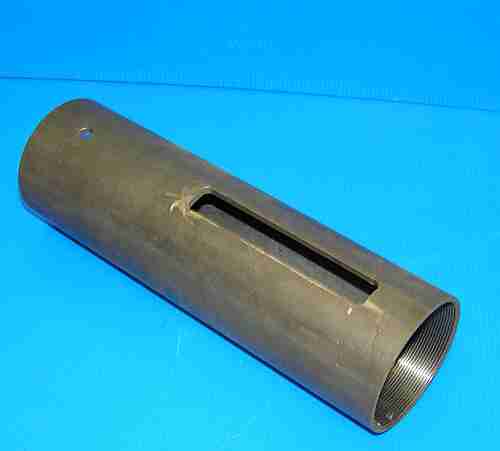

| 4 | 1 | Kolbenrohr | 3B 43 883/3 |  |
| 6 | 2 | Stellring | 4B 43 636 |  |
| 11 | 1 | Verstellmutter | 4B 39 102 | |
| 12 | 1 | Ring | 4B 39 515 |  |
| 12 | 1 | Ring UC | 4B 48 145 |  |
| 13 | 1 | Druckmutter | 3B 48 299/4 |  |
| 14 | 1 | Zahnmutter | 3B 43 986 |  |
| 16 | 1 | Gleitring | 4B 64 194 |  |
| 17 | 1 | Stangenkopf | 3B 62 803/1 | |
| 18 | 1 | Buchse | 3B 40024/11127 |  |
| 18 | 1 | Riegeldraht | 4B 61 190/4 |  |
| 19 | 1 | Schaft UC | 4B 44 655/4 |  |
| 20 | 1 | Stangenkopf | 4B 45 200/2 |  |
| 21 | 1 | Deckel 10" | 4B 44 238 | |
| 22 | 2 | Buchse UC | 3B 40024/07116 |  |
| 23 | 1 | Deckel 10" | 1B 62 552 |
