Bremzzylinder 16"
BZ 16 D11
N 029 611
Klik na broj nacrta pokazuje informaciju za rezervni dio
| Pozicija | Kolicina | Naziv | Broj nacrta |
|
|---|---|---|---|---|
| 0 | 1 | Gewindeschutzkappe | 10 312 |  |
| 0 | 1 | Bezeichnungsschild | BZ 10-111 |  |
| 0 | 1 | Ring | BZ 16-100 |  |
| 0 | 1 | Federring | BZ 16-109 |  |
| 0 | 1 | Federring | BZ 16-122 |  |
| 0 | 1 | Manschette | BZ 16-19 |  |
| 0 | 1 | Zylinder | BZ 16-92 | |
| 0 | 1 | Feder | BZ 16-95 | |
| 0 | 1 | Feder | BZ 16-96 | |

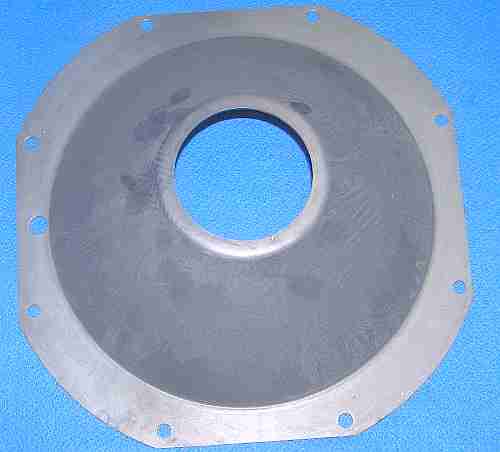

| 0 | 1 | Deckel | BZ 16-97 |  |
| 0 | 1 | Führungsbüchse | BZ 16-98/H |  |
| 0 | 8 | Federring A 12 | FR A12 |  |
| 0 | 2 | Halbrundkerbnagel | KN 3x5 |  |
| 0 | 8 | Sechskantmutter M12 | SKM M12 |  |
| 0 | 8 | 6kt.Schraube M12x35 | SKS M12x35 |  |
| 0 | 1 | Winkelstück R1/8"DIN 1569 | WST R1/8" |  |
| 0 | 1 | Zylinderstift | ZS Ø8h11x55 | |
| 1 | 1 | Tragrahmen schweißen | BZ 16-132 | |
| 2 | 2 | Tragwinkel | BZ 16-85/H |  |
| 3 | 1 | Spannring | BZ 16-86 |  |
| 4 | 1 | Zentrierplatte | BZ 16-87 |  |
| 6 | 1 | Anschlußstutzen | BZ 16-71 |  |
| 8 | 1 | Ring | BZ 16-94 | |
| 13 | 1 | Walterbüchse m. Keil | Wb 45/37x40 |  |
| 15 | 1 | Ring | BZ 16-121 |  |
| 16 | 1 | Kolbenstange komplett | BZ 16-114 | |
| 17 | 1 | Kolbenstangenauge | BZ 16-115 | |
| 18 | 1 | Kolbenstange | BZ 16-103 |  |
| 19 | 1 | Kolben schweißen | BZ 16-111 | |
| 20 | 1 | Kolbenplatte | BZ 16-18 |  |
| 21 | 1 | Pfanne | BZ 16-104 | |
| 22 | 1 | Kolbenrohr | BZ 16-105 |  |
| 26 | 1 | Scheibe | BZ 16-110/H |  |
| 34 | 1 | Moosgummipfropfen Ø8 | Ø8x5 |
