generator reparation
GER/Rep.
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 1 | Schrumpfschlauch | 725 978-5/50mm | |
| 0 | 2 | Flachsteckhülse 6.3 | 9-160583-2 | |
| 0 | 1 | gasket | E 100.561 |  |
| 0 | 1 | fitting | EAV 20-1 |  |
| 0 | 4 | Federscheibe A 2.6 | FS A2.6 |  |
| 0 | 4 | Federscheibe | FS B 10 |  |
| 0 | 4 | Federscheibe DIN 137 | FS B4 |  |
| 0 | 4 | Federscheibe B6 | FS B6 |  |
| 0 | 1 | Cu-Litze 1.5mm² | LI 1.5mmx100mm | |
| 0 | 1 | O-Ring | OR |  |
| 0 | 4 | O-Ring | OR | |
| 0 | 4 | O-Ring | OR | |
| 0 | 1 | O-Ring | OR | |
| 0 | 4 | O-Ring | OR | |
| 0 | 4 | Hex nut | SKM M4/439 | |
| 0 | 4 | Sechskantschraube M10 | SKS M10x100/26 |  |
| 0 | 2 | Sechskantschraube | SKS M4x12 |  |
| 0 | 4 | Sechskantschraube | SKS M6x20 |  |
| 0 | 1 | Deckel | ST 400 404 |  |
| 0 | 1 | Chassis | ST 401 191 |  |
| 0 | 1 | Stecker | ST 401 191-1 |  |
| 0 | 1 | Lid | ST 409 858 |  |
| 0 | 1 | rubber seal | W 4088 156 X |  |
| 0 | 1 | Case | WB 100 703 |  |
| 0 | 1 | Generator 40 pol. | WB 200 777 | |
| 0 | 1 | Generator 40 pol. | WB 200 777-Rep | |
| 0 | 1 | Gummipuffer rechts | WB 300 040 |  |
| 0 | 1 | Gummipuffer links | WB 302 210 | |
| 0 | 1 | gasket | WB 303 396 |  |

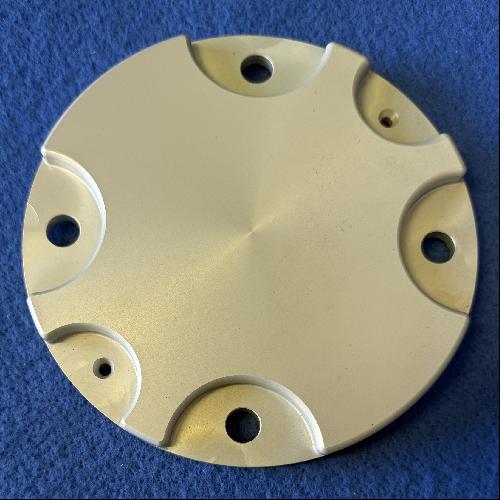

| 0 | 1 | Lid | WB 303 653 | |
| 0 | 1 | gasket | WB 400 063 |  |
| 0 | 1 | Kupplung "PAGUFLEX" | WB 405 826 |  |
| 0 | 2 | Ring | WB 409 223/H |  |
| 0 | 1 | Ring | WB 409 548 |  |
| 0 | 1 | Klemmplatte | WB 409 863 |  |
| 0 | 4 | cylinder head bolt | ZSR M2.6x10 | |
| 0 | 2 | cylinder head bolt | ZSR M3x10 | |
| 0 | 2 | cylinder head bolt M8x75 | ZSR M8x75 |
