Lok-Steuerventil Reparatur
LSt 1/Rep.
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 6 | Bördelstutzen | 12 637-2 |  |
| 0 | 1 | Bördelstutzen NW 1/2" | 12 639-2 |  |
| 0 | 7 | Dichtring | 12 639-6 |  |
| 0 | 1 | Bördelstutzen Teil 14 | 12 640-2 |  |
| 0 | 2 | Dichtung 30x21x2 | 12 640-6 |  |
| 0 | 1 | Zylinderstift Ø4x6 | 14 561/1 | |
| 0 | 2 | ZylinderstiftØ7.25x5 | 14 561/8 | |
| 0 | 1 | Schild | 14 735 |  |
| 0 | 1 | Einstellschraube | E 100.426 |  |
| 0 | 1 | Lid | E 100.427 |  |
| 0 | 1 | Schild | E 100.807 |  |
| 0 | 2 | Einschraubstutzen | FV 3-200 |  |
| 0 | 2 | Inbusschraube M5x15 | INS M5x15 | |
| 0 | 1 | G-P Wechselventil Reparatur | LSt 1-08/a/Rep. | |
| 0 | 1 | Höchstdruckbegrenzer LSt 1 Reparatur | LSt 1-08/b/Rep. | |
| 0 | 1 | Bezeichnungsschild | LSt1-300 |  |
| 0 | 2 | Mutter | LSt1-301 |  |
| 0 | 7 | Einschraubstutzen | LSt1-302 |  |
| 0 | 1 | Mutter | LSt1-303 |  |
| 0 | 6 | Mutter | LSt1-305 |  |
| 0 | 1 | Bezeichnungsschild | LSt1-307 B |  |
| 0 | 1 | spring | LStE1-14 |  |
| 0 | 1 | Hex nut | LStE1-17 |  |
| 0 | 1 | Lid | LStE1-6 |  |
| 0 | 1 | Ventilstange | LStE1-7 |  |
| 0 | 1 | Federteller | LStE1-8 |  |
| 0 | 1 | Einstellschraube | LStE1-9 |  |
| 0 | 1 | O-Ring | OR |  |
| 0 | 1 | O-Ring | OR | |
| 0 | 1 | O-Ring | OR | |
| 0 | 1 | O-Ring | OR | |
| 0 | 1 | O-Ring | OR | |
| 0 | 1 | O-Ring | OR | |
| 0 | 4 | Hexagonal nut M10 | SKM M10/DIN 934 |  |
| 0 | 1 | Hex nut | SKM M8 | |
| 0 | 4 | Sechskantschraube | SKS M10x70 |  |
| 0 | 1 | Sicherungsring DIN 472 | SR J30x1.2/vz |  |
| 0 | 1 | Beam | ST 100 203 |  |
| 0 | 1 | Gehäuse-Mittelteil | ST 200 237 |  |
| 0 | 1 | Gehäuse-Unterteil | ST 200 580 | |
| 0 | 1 | Deckel | ST 400 404 |  |
| 0 | 1 | Gehäuse-Deckel | ÜS 1-1 | |
| 0 | 1 | Lid | ÜS 1-2 |  |
| 0 | 2 | Wellendichtung Ø10/22x7 | W 4083 054 |  |
| 0 | 1 | Wellendichtung Ø11/30x7 | W 4083 076 |  |
| 0 | 1 | Wellendichtung Ø20/30x7 | W 4083 264 |  |
| 0 | 1 | rubber seal | W 4088 156 X |  |
| 0 | 1 | rubber seal | W 4088 323 X |  |
| 0 | 1 | rubber seal | W 4088 420 X |  |
| 0 | 1 | Gehäuse-Oberteil Vormo. | WB 100 204-U | |
| 0 | 1 | Abschirmstück | WB 300 363 |  |
| 0 | 1 | membrane | WB 400 082 |  |
| 0 | 1 | Ventilsitzgummi | WB 400 670 |  |
| 0 | 1 | Zylinderschraube spezial | WB 400 718/H |  |
| 0 | 1 | membrane | WB 400 749 |  |
| 0 | 1 | membrane | WB 400 752 |  |
| 0 | 1 | spring | WB 400 953 |  |
| 0 | 1 | membrane | WB 400 961 |  |
| 0 | 1 | Drosselschraube | WB 401 396/0 |  |
| 0 | 1 | Drosselschraube | WB 401 397/0 |  |
| 0 | 1 | Drosselschraube | WB 401 399 |  |
| 0 | 1 | Nylonfilter | WB 401 990 |  |
| 0 | 1 | Ventilsitzgummi | WB 402 088 |  |
| 0 | 4 | Stehbolzen | WB 402 089 |  |
| 0 | 3 | gasket | WB 402 138 |  |
| 0 | 1 | Abstützteller | WB 402 139 |  |
| 0 | 1 | Ventilstössel | WB 402 140 |  |
| 0 | 1 | Lid | WB 402 141 |  |
| 0 | 1 | gasket | WB 402 142 |  |
| 0 | 4 | Sechskantschraube | WB 402 312 |  |
| 0 | 1 | support ring | WB 402 313 |  |
| 0 | 1 | Federteller | WB 402 314 |  |
| 0 | 1 | Ring | WB 402 315 |  |
| 0 | 1 | spring | WB 402 316 |  |
| 0 | 1 | Ventilstange | WB 402 319 |  |
| 0 | 1 | pressure disk | WB 402 320 |  |
| 0 | 1 | Abstützscheibe | WB 402 321 |  |
| 0 | 1 | Lid | WB 402 400 | |
| 0 | 1 | Membrane | WB 402 401 |  |
| 0 | 1 | Verschlußzapfen | WB 402 402 |  |
| 0 | 1 | spacer | WB 402 403 |  |
| 0 | 1 | spacer | WB 402 405 |  |
| 0 | 1 | Ring | WB 402 408 |  |
| 0 | 1 | membrane | WB 402 763 |  |

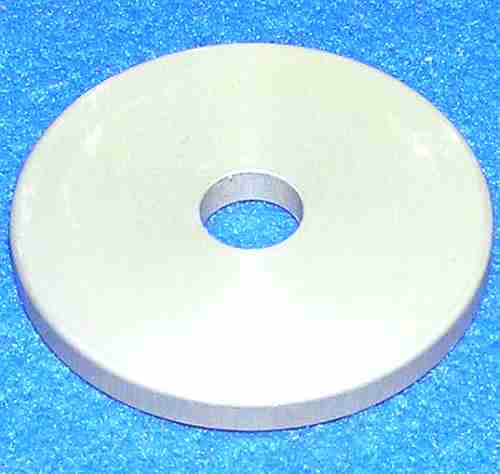

| 0 | 1 | pressure disk | WB 403 222 |  |

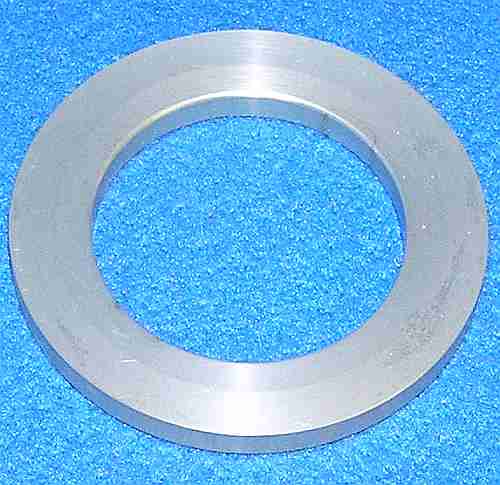

| 0 | 1 | support ring | WB 403 302 |  |
| 0 | 1 | pressure disk | WB 403 371 |  |

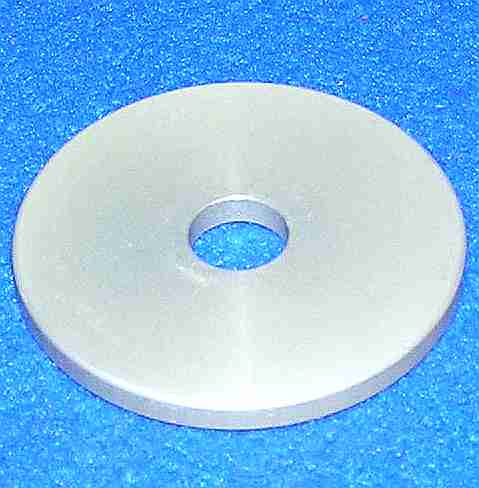

| 0 | 1 | pressure disk | WB 403 383 |  |
| 0 | 1 | support ring | WB 403 451 |  |
| 0 | 1 | support ring | WB 403 463 |  |
| 0 | 1 | Nylon-Filter | WB 406 068 |  |
| 0 | 4 | cylinder head bolt | ZSR M4x6 |
