indicator devices
6E.1.00.2
- inquire spare part or device -
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 1 | Klebeschild | 6E.1.34.4 | |
| 0 | 1 | Verschraubung | 6E.1.35.4 | |
| 0 | 1 | Dichtungsfett | HZ 103 | |
| 1 | 1 | Case | 6E.1.01.2 |  |

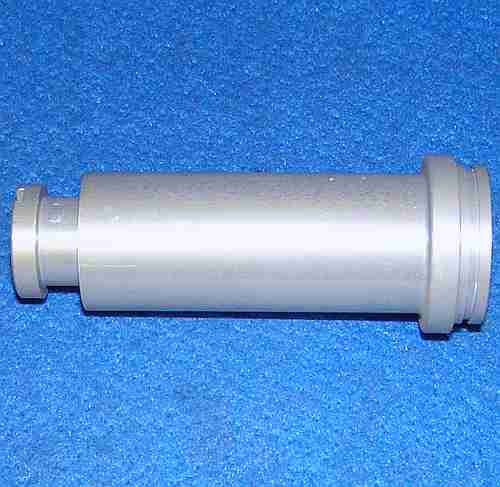

| 2 | 1 | Kolben | 6E.1.02.3 |  |
| 3 | 1 | Nutring | 6E.1.03 | |

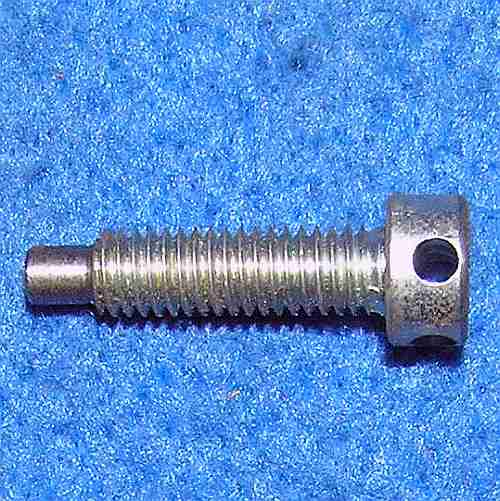

| 4 | 1 | Kreuzlochschraube | 6E.1.04.4 |  |
| 5 | 1 | Federscheibe B6 | FS B6 |  |
| 6 | 1 | Anzeigeschild | AV 10-5 |  |
| 7 | 1 | Sicherungsring A 32x1.5V | SR AV32x1.5/vz |  |
| 8 | 1 | spring | 6E.1.08.4 | |
| 9 | 1 | Washer | 6E.1.09.4 |  |
| 11 | 1 | Lid | 6E.1.11.4 | |
| 12 | 1 | rubber seal | W 4088 319 X |  |
| 13 | 1 | O-Ring | OR |  |
| 14 | 1 | Gehäusedeckel | 6E.1.14.3 |  |
| 15 | 1 | Silikon transparent | Kartusche | |
| 16 | 1 | Staubschutz | 6E.1.16.4 | |
| 17 | 4 | threaded bolt | AV 10-8 |  |
| 18 | 4 | Sechskantmutter M6 | SKM M6/DIN 985 |  |
| 19 | 4 | Scheibe 6.4 | SCH 6.4 | |
| 20 | 1 | Gewindeschutzkappe | 10 119 |  |
