Meßdose
ALM 101
N 006 005
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 1 | spring | ALM 10221 |  |
| 0 | 2 | Messingfilter | ALM 10230 |  |
| 0 | 1 | Bushing | E 100 001 |  |
| 0 | 1 | Kunststoffring | E 100 004 |  |

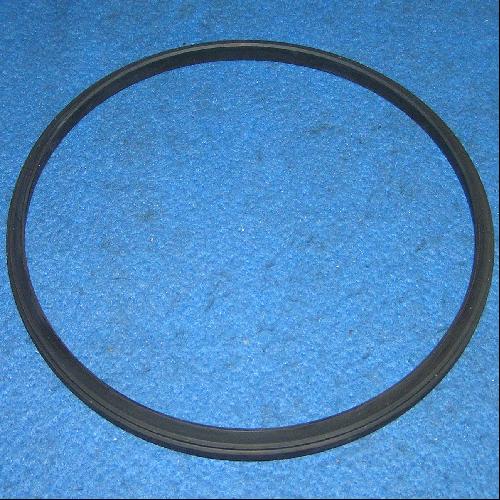

| 0 | 1 | Abstreifring | E 100.814 |  |

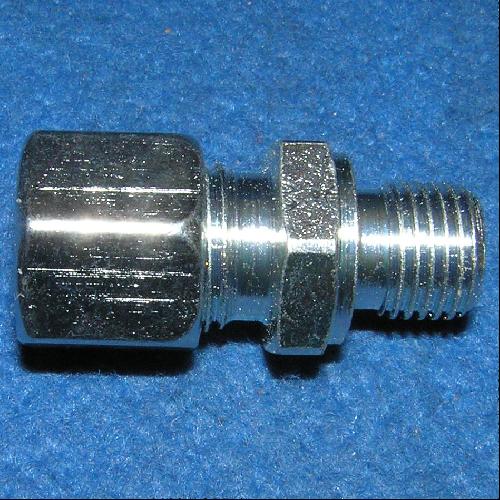

| 0 | 2 | Gerade Verschraubung | E 100.816 |  |
| 0 | 2 | Schraube | E 100.818 | |
| 0 | 1 | Abstützring | E 100.819 | |
| 0 | 1 | O-Ring | OR |  |
| 0 | 1 | support ring | ST 400 149 |  |
| 0 | 1 | rubber seal | W 4088 209 X |  |

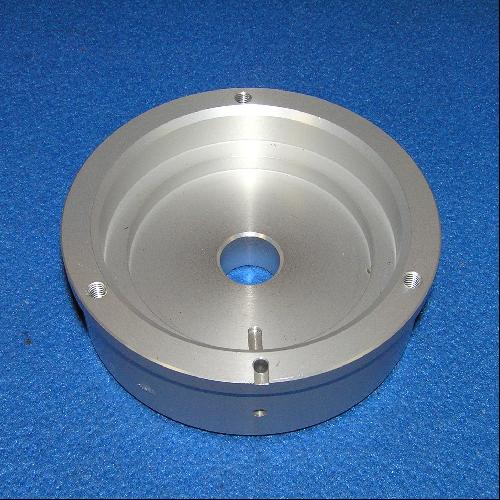

| 0 | 1 | Kolben | WB 300 733 |  |
| 0 | 1 | Deckel komplett | WB 300 766-U | |

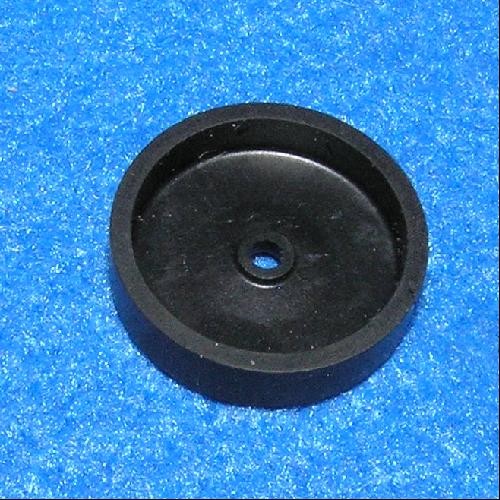

| 0 | 1 | Membrane | WB 400 300 |  |
| 0 | 1 | membrane | WB 400 752 |  |
| 0 | 1 | Scheibe | WB 404 491 | |
| 0 | 1 | Federteller | WB 404 495 | |
| 0 | 1 | Stössel | WB 404 499 | |
| 0 | 1 | Ventilstössel komplett | WB 404 501-U | |
| 0 | 1 | Deckel komplett | WB 404 502-U | |
| 0 | 3 | Schraube | WB 404 505 | |
| 0 | 10 | Drosselscheibe | WB 404 678 | |
| 0 | 10 | Drosselscheibe | WB 404 679 | |
| 0 | 2 | Distanzring | WB 404 680 | |
| 0 | 1 | Druckteller komplett | WB 404 682-U | |
| 0 | 1 | Gehäuse komplett | WB 404 684-U | |
| 0 | 1 | membrane | WB 404 731 |  |
| 0 | 1 | Übertragungsmasse | WB 404 735 |  |
| 0 | 3 | cylinder head bolt | ZSR M6x25/A2 |
