spare parts for:

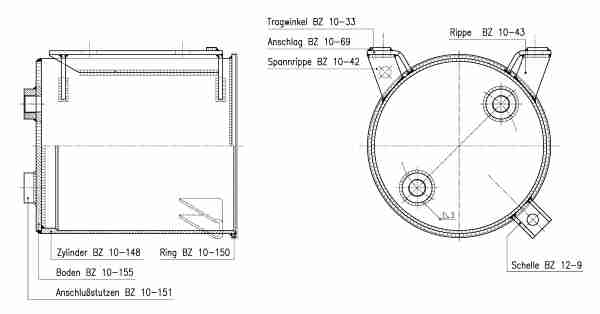

Zylinder komplett (geschweißt)

BZ 10 U-1

- inquire spare part or device -


Click on drawing number for information about spare part

pos.	count	name	drawing number
0	1	Boden	BZ 10-149
3	1	Zylinder	BZ 10-148
4	1	Bördel	BZ 10-150
6	2	Anschlußstutzen	BZ 10-151
7	1	Schelle	BZ 12-9
8	3	Rippe	BZ 10-43
9	1	Spannrippe	BZ 10-42
10	2	Anschlag	BZ 10-69
11	2	Tragwinkel	BZ 10-33
