Zylinder komplett
BZ 14-01
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 2 | Stutzen | BZ 12-205 |  |

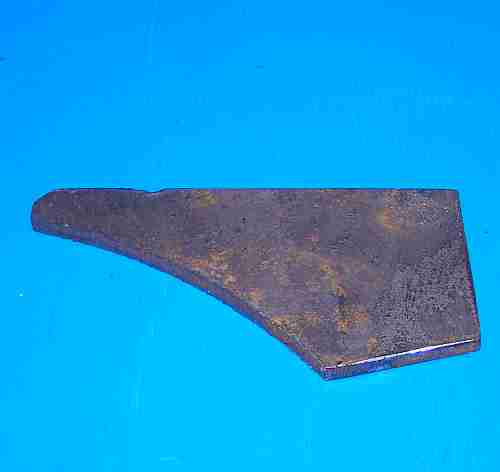

| 0 | 4 | Rippe | BZ 14-10 |  |
| 0 | 1 | Zylinder | BZ 14-157 | |
| 0 | 1 | Ring | BZ 14-163 | |
| 0 | 1 | Boden 14" | BZ 14-165 | |
| 0 | 4 | Stützblech | BZ 14-171 | |

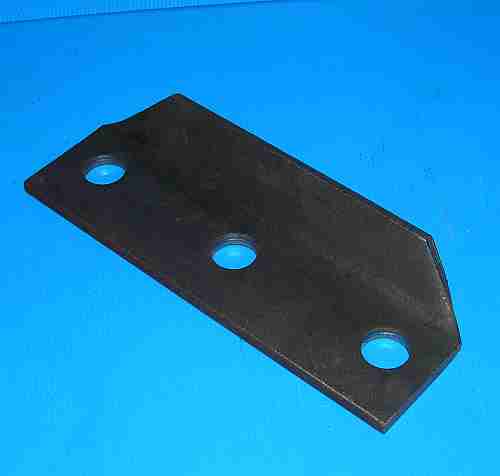

| 0 | 2 | Tragwinkel | BZ 14-2 |  |
| 0 | 1 | Lager | BZ 14-4 |  |
| 0 | 1 | Hebelträger | BZ 14-64 | |
| 0 | 1 | Washer | BZ 14-7 |  |
| 0 | 2 | Schelle | BZ 14-9 |  |
| 0 | 1 | Splint | SP 8x50/DIN 94 |
