Festhaltebremsventil
EV 50
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|

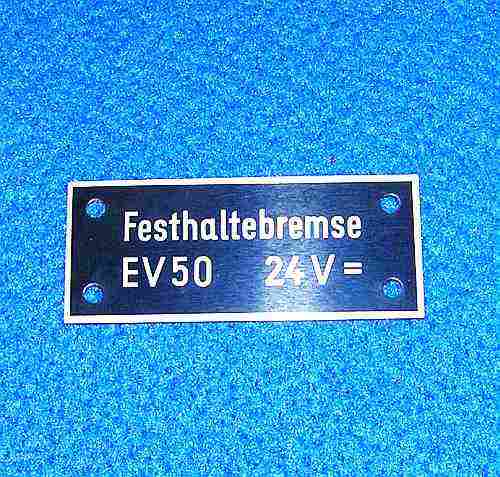

| 0 | 1 | Bezeichnungsschild | BZ 5-115 |  |

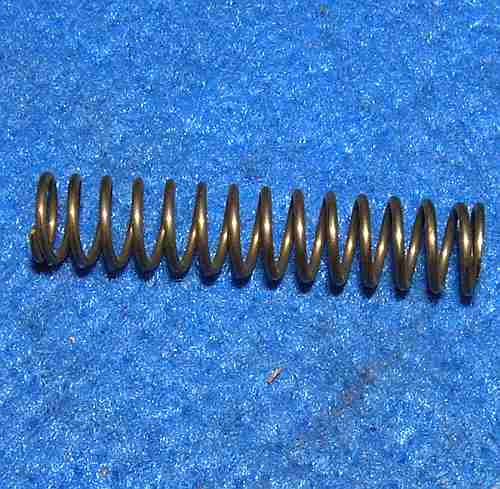

| 0 | 1 | spring | EV 50-3 |  |
| 0 | 2 | Federring | FR 3 | |
| 0 | 6 | Federscheibe | FS A 4 | |

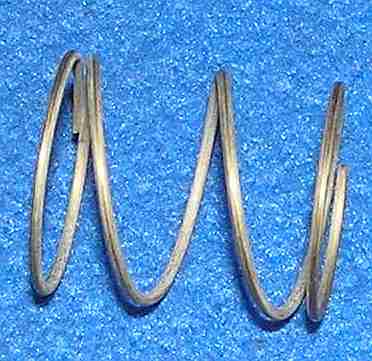

| 0 | 1 | spring | FV 4-80 |  |
| 0 | 2 | Innbusschraube | INS M6x10 | |
| 0 | 4 | Halbrundkerbnagel | KN 3x5 |  |
| 0 | 1 | Nutring | NR Ø22xØ15x4 | |
| 0 | 4 | Hex nut | SKM BM4 | |
| 0 | 1 | rubber seal | W 4088 209 X |  |
| 0 | 1 | rubber seal | W 4088 326 X |  |
| 0 | 1 | gasket | W 4088 443 X |  |
| 0 | 1 | Spulenkörper | WB 300 009 |  |
| 0 | 1 | Lager | WB 400 087 |  |
| 0 | 1 | gasket | WB 402 071 |  |
| 0 | 1 | dowel | ZS Ø6h8x10 | |
| 0 | 2 | cylinder head bolt | ZSR M3x10 | |
| 1 | 1 | Distanzscheibe | WB 401 962/H | |
| 9 | 1 | Einschraubstutzen | WB 400 207 |  |
| 10 | 1 | Überwurfmutter | WB 400 208 |  |
| 11 | 1 | Lötring | WB 400 209 |  |
| 13 | 1 | Lid | ST 402 081 |  |
| 14 | 1 | Magnethülse | WB 300 008 |  |
| 17 | 1 | Anker | ST 402 070 |  |
| 18 | 1 | Joch | ST 400 086 |  |
| 19 | 1 | Klemmplatte | WB 400 210 | |
| 21 | 1 | Lid | ST 402 083 |  |
| 22 | 1 | Case | EV 5S-2 | |

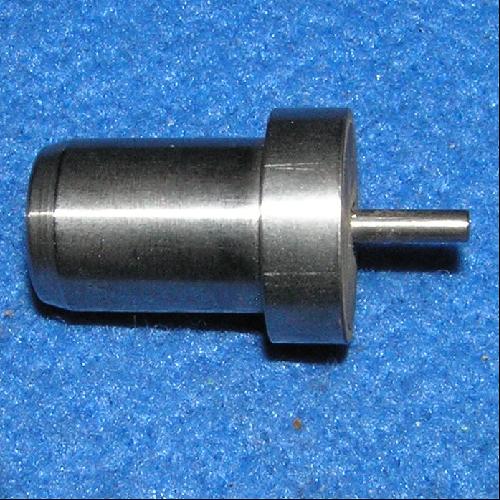

| 24 | 1 | Ventilstössel | EV 5S-3 |  |
| 25 | 1 | Ventilsitz | EV 5S-5 |  |

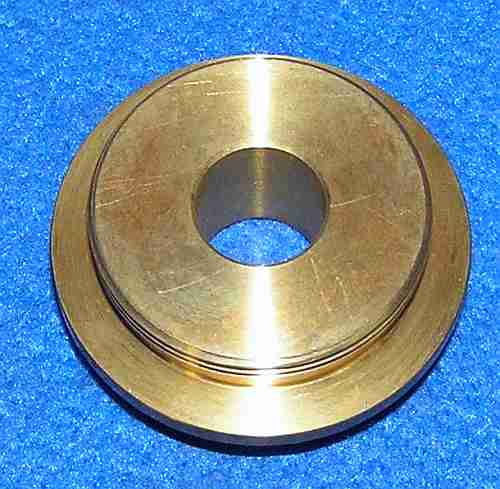

| 26 | 1 | Lid | EV 5S-6 |  |
| 27 | 1 | Stössel | EV 5S-9 |  |
| 28 | 1 | Ventilsitzgummi | EV 5S-15 | |
| 29 | 1 | Hülse | EV 5S-16 |  |
| 30 | 1 | Ventilsitzgummi | EV 5S-18 | |
| 31 | 1 | Ventilstösselführung | EV 50-1 |  |
| 32 | 1 | Ventil | EV 50-2 |
