draw gear
F 124/Rep.
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 1 | Bezeichnungsschild | BZ 10-111 |  |
| 0 | 1 | Gehäuserohr | F 124-10 |  |
| 0 | 1 | Platte | F 124-11 |  |
| 0 | 1 | Kronenmutter | F 124-12/H | |
| 0 | 1 | Abdeckplatte | F 124-14 |  |

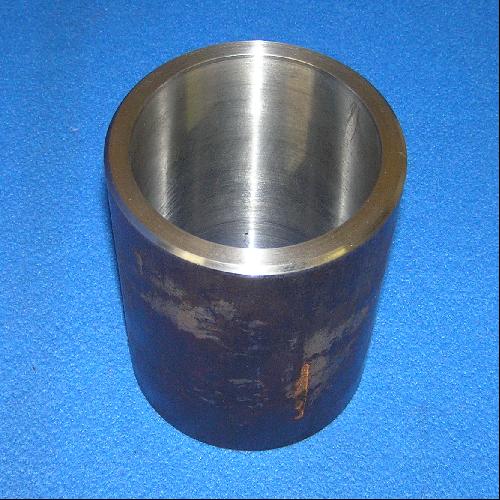

| 0 | 1 | Lagerrohr | F 124-15 |  |

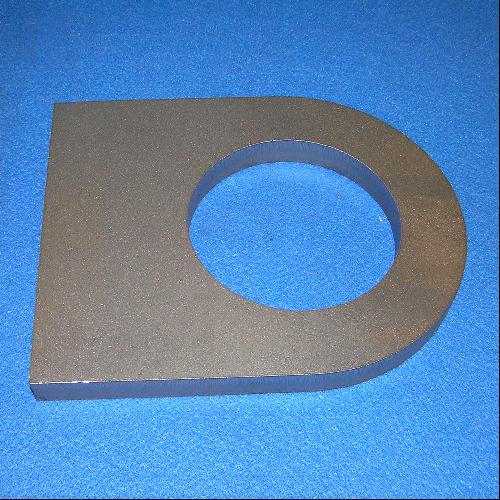

| 0 | 2 | Lagerblech | F 124-17 |  |
| 0 | 8 | Sechskantschraube | F 124-20 |  |
| 0 | 2 | flange | F 124-21 |  |
| 0 | 1 | Lid | F 124-4 |  |

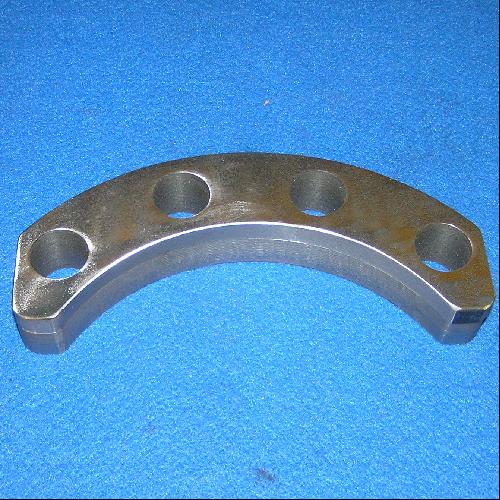

| 0 | 2 | Leiste | F 124-7 |  |
| 0 | 1 | Zugspindel | F 124-9/H | |
| 0 | 1 | Bolt | F 708 |  |
| 0 | 8 | Federring | FR A24 |  |
| 0 | 4 | Hammerschraube B M. Mu | HSR M16x55 | |
| 0 | 2 | Kerbnagel | KN 3x5/St |  |
| 0 | 4 | Sechskantmutter M16 vz | SKM M16 | |
| 0 | 8 | Sechskantmutter | SKM M24 |  |
| 0 | 1 | Sechskantschraube | SKS M16x35 |  |
| 0 | 1 | Splint | SP 10x100 | |
| 0 | 1 | Seegerring | SR 16 |  |
