BG 01 - Innenbehälter
FB 3.00-01
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 1 | Abdeckblech | FB 3.00.02 | |
| 0 | 1 | Innenbehälter | FB 3.01.00 | |
| 0 | 1 | Bodenblech | FB 3.01.01 | |
| 0 | 1 | Deckblech | FB 3.01.02 | |
| 0 | 1 | Geräteblech | FB 3.01.03 | |
| 0 | 2 | Prallblech | FB 3.01.04 | |
| 0 | 1 | Lochblechkasten | FB 3.01.05 | |
| 0 | 1 | Wanne | FB 3.01.06 | |
| 0 | 1 | gusset | FB 3.01.07 | |
| 0 | 4 | Winkel seitlich | FB 3.01.13 | |
| 0 | 1 | Winkel oben | FB 3.01.14 | |
| 0 | 1 | Winkel links | FB 3.01.15 | |
| 0 | 1 | Winkel rechts | FB 3.01.16 | |
| 0 | 1 | Anschlagwinkel | FB 3.01.17 | |
| 0 | 1 | Installationsblech | FB 3.01.18 | |
| 0 | 1 | Installationsblech | FB 3.01.19 | |
| 0 | 1 | Installationsblech | FB 3.01.20 | |
| 0 | 1 | Installationsblech | FB 3.01.23 | |
| 0 | 1 | Winkel unten | FB 3.01.24 | |
| 0 | 1 | Verbindungsblech | FB 3.01.26 | |
| 9 | 1 | Bodenpfanne | FB 3.01.08 | |
| 11 | 1 | Deckenpfanne | FB 3.01.09 | |

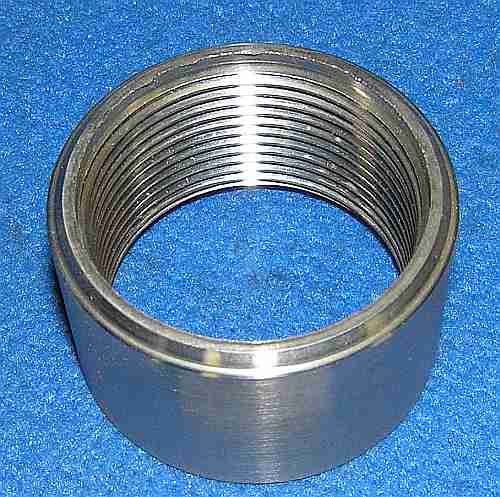

| 12 | 2 | fitting | FB 3.01.10 |  |
| 13 | 4 | fitting | FB 3.01.11 | |
| 14 | 1 | Anschluß | FB 3.01.12 | |

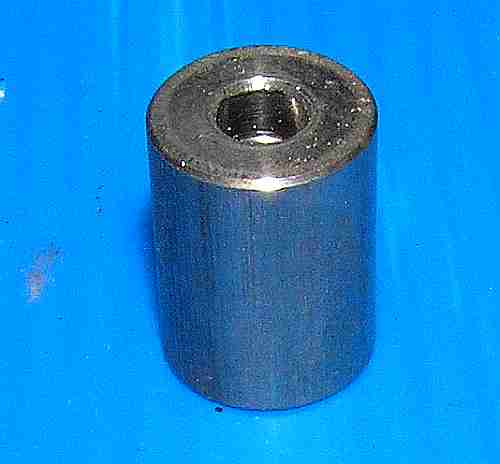

| 26 | 4 | Gewindesockel | FB 3.01.21 |  |
| 27 | 1 | Entwässerungsrohr | FB 2.05.01-2 | |
| 28 | 1 | Leiste | GT 1.3.01.48 |  |
| 29 | 1 | Thermostatrohr komp. | FB 1.01.16 | |
| 30 | 1 | Pipe | FB 1.01.16-1 | |
| 31 | 1 | Lid | FB 1.01.16-2 | |
| 33 | 1 | Flansch komplett | FB 1.01.10 | |
| 34 | 1 | flange | FB 1.01.10-1 | |
| 36 | 1 | Lid | FB 1.00.01 |
