Lastwechselkasten
LK 4
N 028 001
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 1 | Deckblech | 11 158 |  |
| 0 | 1 | spring | 11 160 |  |

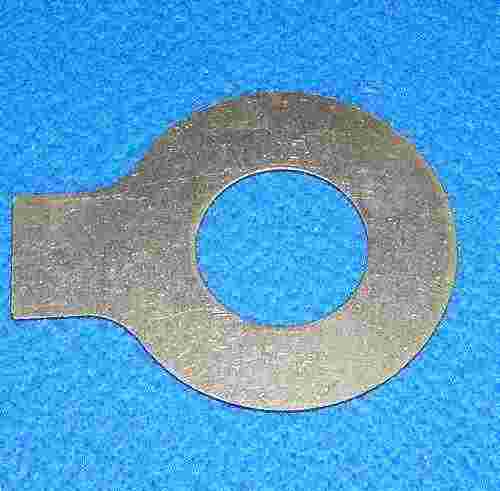

| 0 | 1 | Sicherungsblech | 11 167 |  |
| 0 | 1 | Lagerplatte komplett | E 100 723/K | |
| 0 | 2 | Seitenwand komplett | E 100 724/K | |
| 0 | 1 | Hebel komplett | E 100 725/K | |
| 0 | 1 | Hebel komplett | E 100 726/K | |
| 0 | 1 | Hebel komplett | E 100 727/K | |
| 0 | 1 | Lastwechselkasten SW | E 100.722 | |
| 0 | 1 | Washer | SCH 13 | |
| 0 | 2 | Scheibe 8.4 | SCH 8.4 | |
| 0 | 1 | Spannhülse | SH 5x26 | |
| 0 | 2 | Splint | SP 3.2x16 | |
| 0 | 1 | Splint | SP 3.2x20 |  |
| 0 | 1 | Splint | SP 8x110 | |
| 0 | 1 | walter bush | Wb 45/36.4x30 | |
| 0 | 1 | Zylinderkerbstift | ZKS 4x24 | |

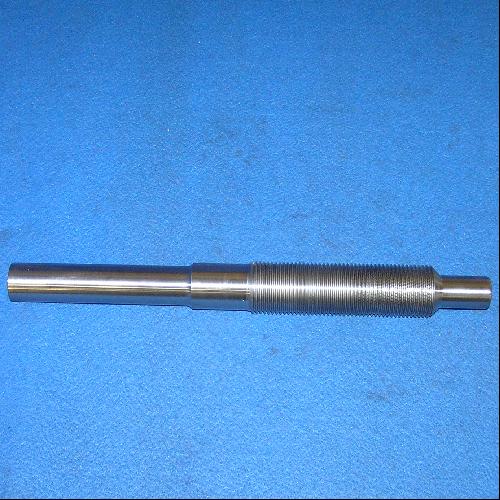

| 2 | 1 | Spindel | 11 104 |  |

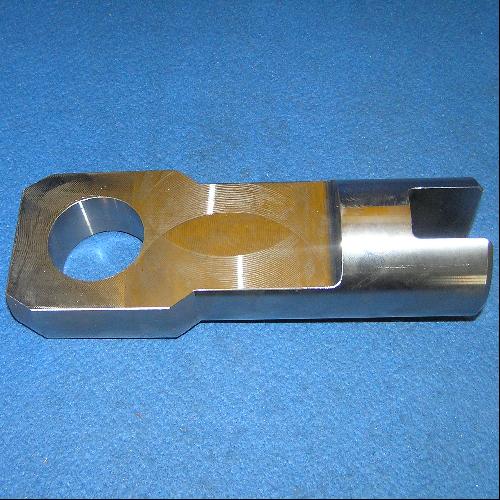

| 4 | 1 | Stützzapfen | 11 107 |  |

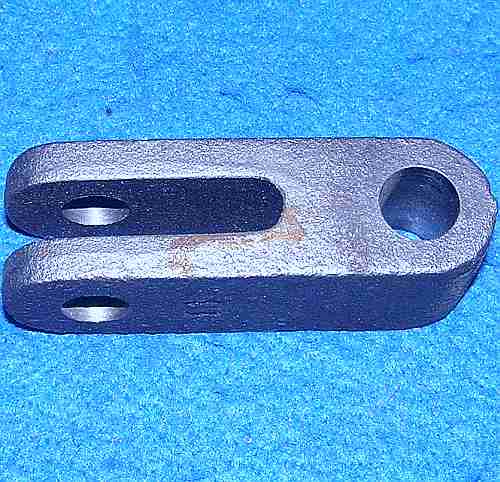

| 7 | 1 | Kupplungsstück | 11 117 |  |
| 8 | 1 | Lever | 11 120 |  |

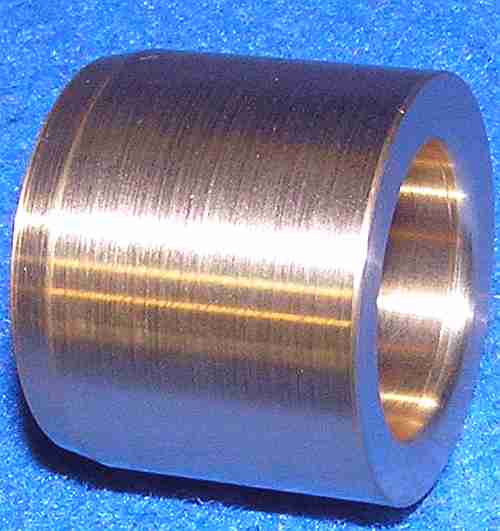

| 9 | 1 | Bushing | 11 122 |  |
| 10 | 1 | Drehschieber | 11 127 |  |

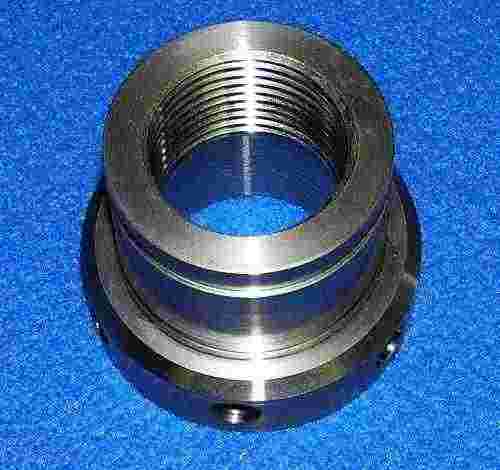

| 11 | 1 | Reguliermutter | 11 138 |  |

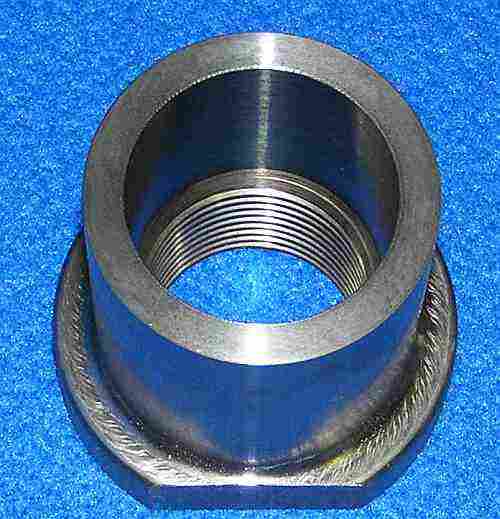

| 26 | 1 | Mutter | 11 159 |  |

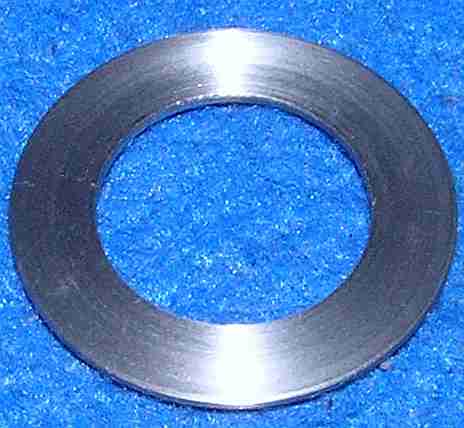

| 30 | 2 | Washer | 11 163 |  |

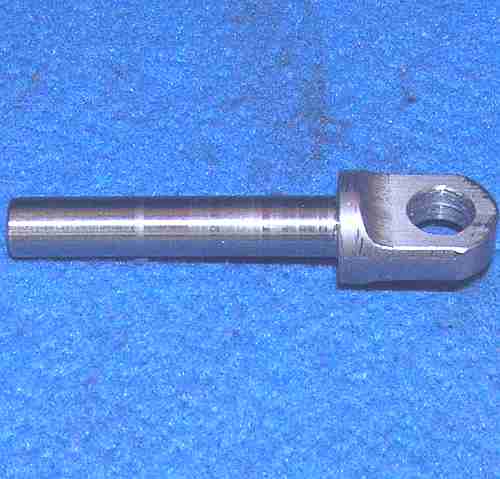

| 31 | 1 | spring bolt | 11 165 |  |

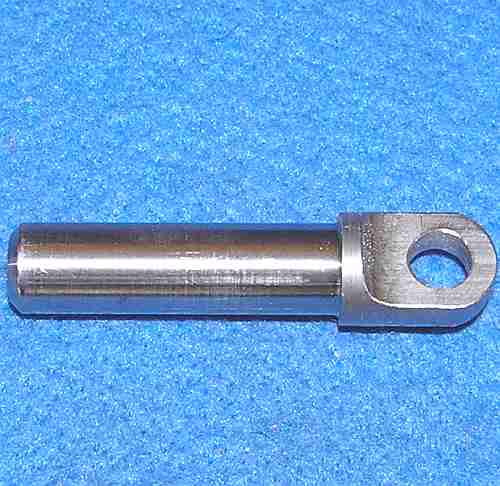

| 32 | 1 | Federhülse | 11 166 |  |
