Umstellventil Reparatur
LV 20/Rep.
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|

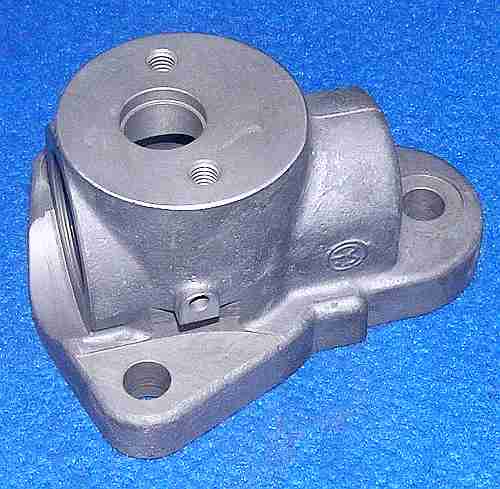

| 1 | 1 | Case | LV 20-1 |  |
| 2 | 1 | dowel | ZS 4m6x14 |  |
| 3 | 1 | spring | WB 400 068 |  |
| 4 | 1 | O-Ring | OR |  |
| 5 | 1 | Ventilsitz | WB 400 064/H |  |
| 6 | 1 | spring | WB 400 069 |  |

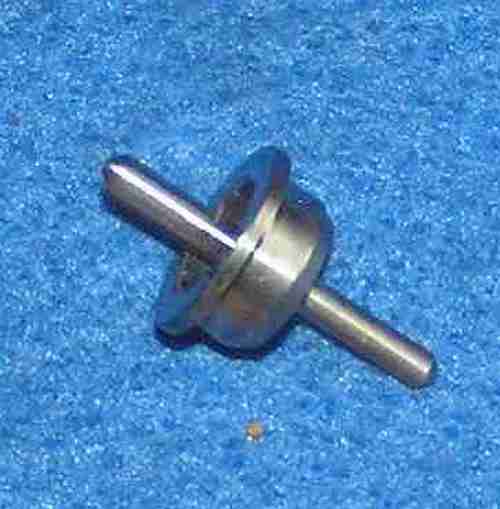

| 7 | 1 | Ventilstössel | WB 400 062 |  |
| 8 | 2 | Ventilsitzgummi | WB 400 083 |  |
| 9 | 1 | spacer | WB 400 065 |  |
| 10 | 1 | O-Ring | OR | |
| 11 | 1 | Ventilsitz | WB 400 066/H |  |
| 12 | 1 | Hülse | LV 20-2 |  |
| 13 | 1 | rubber seal | W 4088 248 X |  |
| 14 | 1 | Lid | LV 20-3 |  |

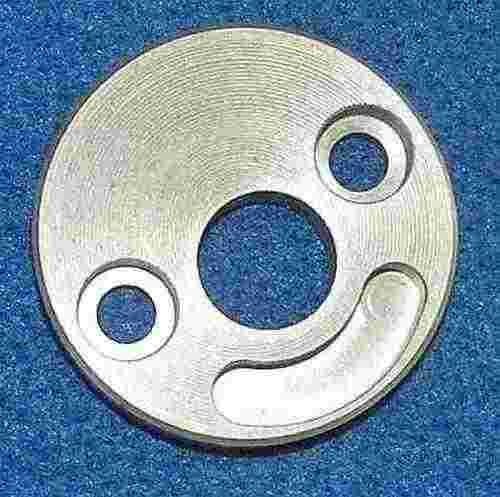

| 15 | 1 | Lid | LV 20-4 |  |

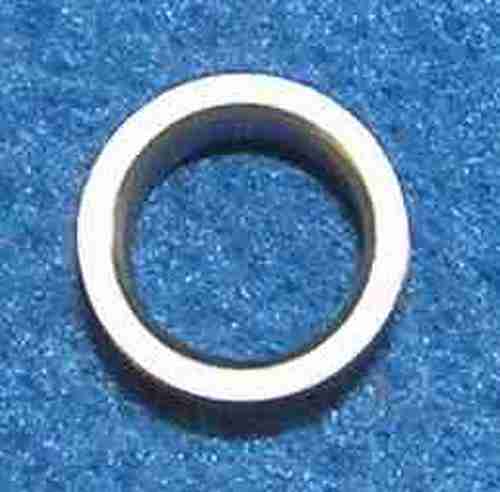

| 16 | 1 | Bushing | LV 20-5 |  |

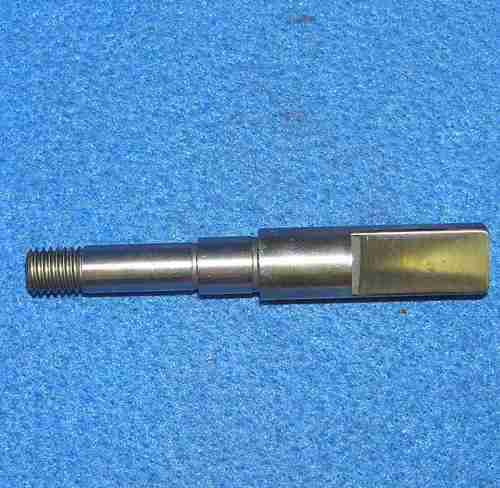

| 17 | 1 | Steuerwelle | LV 20-6 |  |
| 18 | 1 | Paßfeder | A3x3x14 |  |
| 19 | 1 | Umstellhebel | EV 2-3 |  |
| 20 | 1 | Hexagonal nut M10 | SKM M10/DIN 934 |  |
| 21 | 1 | Fächerscheibe | FÄS A10.5 | |
| 22 | 2 | Inbusschraube | INS M6x12 |
