Luftfeder
MF 560.50
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 5 | Sechskantmutter M6 | SKM M6/DIN 985 |  | |
| 0 | 1 | Kegelfeder | 33.11.01.007 | |

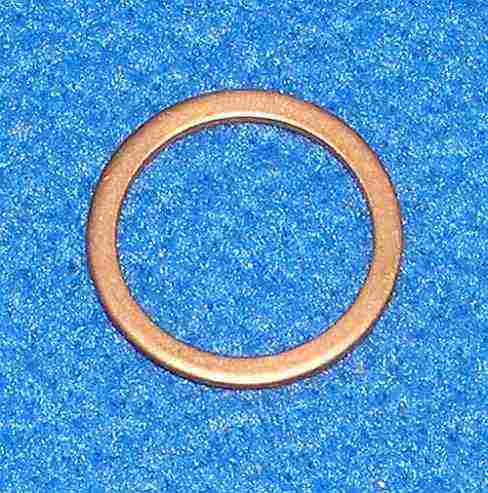

| 0 | 1 | Kupferdichtung | CU/DI 22/27x1.5 |  |
| 0 | 2 | Federring | FR A14 | |
| 0 | 4 | Federring DIN 127 | FR A6 | |
| 0 | 8 | Inbusschraube 10.9 Fe/Zn | INS M10x40 | |
| 0 | 2 | Halbrundkerbnagel | KN 3x4 | |
| 0 | 1 | Typenschild | LF 109 |  |
| 0 | 1 | membrane | LF 135 | |
| 0 | 1 | Außenzylindergummi | LF 136 | |
| 0 | 1 | Gummi Innenzylinder | LF 137 | |
| 0 | 1 | Gummisitz Innenzylin | LF 138 | |
| 0 | 1 | Verschleißplatte | NF 106 |  |
| 0 | 1 | Gleitplatte | NF 108/H |  |
| 0 | 4 | Washer | NF 109 |  |
| 0 | 1 | Washer | NF 113 | |
| 0 | 1 | Drosselscheibe | NF 151 |  |
| 0 | 8 | Washer | SCH A10.5/DIN125 | |
| 0 | 2 | Hex nut | SKM M14/934 | |
| 0 | 1 | Sicherungsring | SR J55x2/A2 | |
| 0 | 4 | Senkschraube-8.8 Fe/Zn | SS M6x30 | |
| 0 | 1 | Verschlußschraube | VSS M22x1.5 | |
| 1 | 1 | Innenzylinder | LF 133 | |
| 2 | 1 | Außenzylinder umarb. | LF 134-1 | |
| 4 | 1 | Deckplatte | NF 104 |  |
| 5 | 1 | Gleitring | NF 105 |  |
