spare parts for:

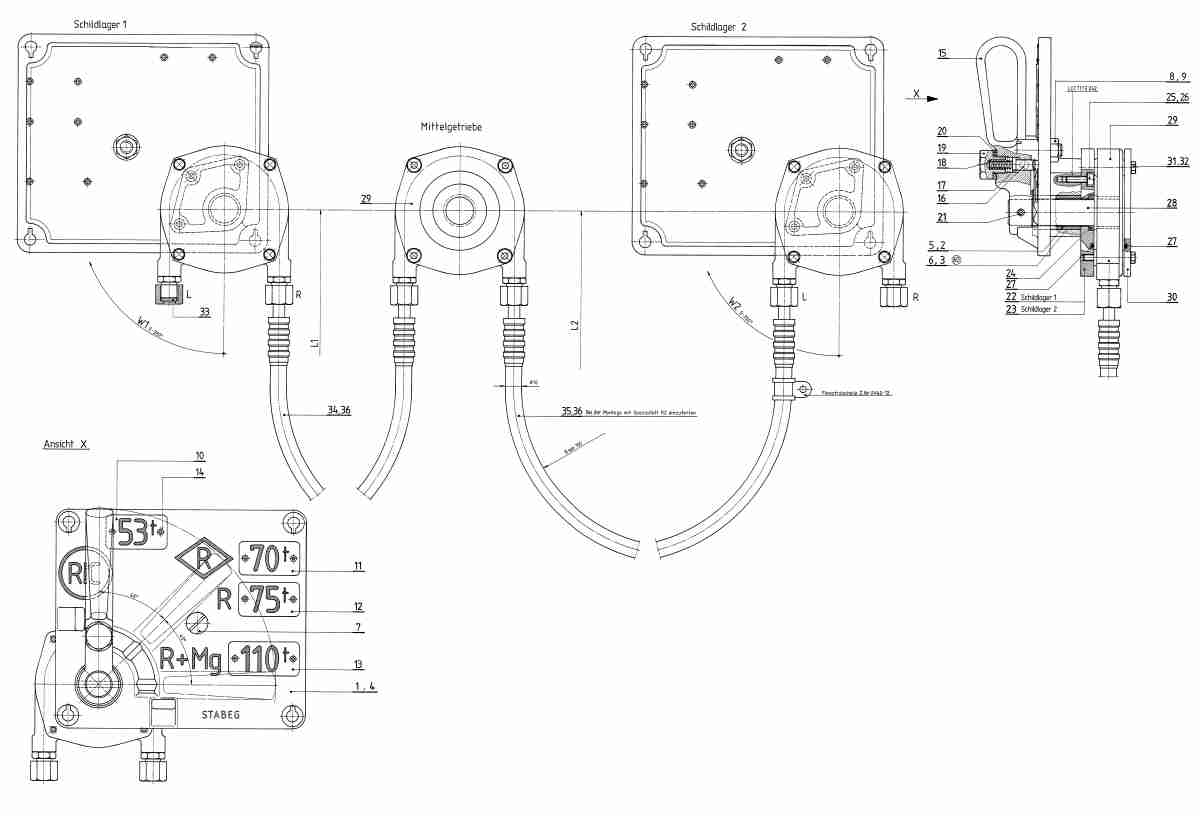

reversing device RIC-R-R+Mg

UV 40

N 027 056

- inquire spare part or device -


Click on drawing number for information about spare part

pos.	count	name	drawing number
0	8	Gewindeschutzstopfen	10 073
0	2	Gewindeschutzkappe	10 312
0	2	Griff	UV 23-9

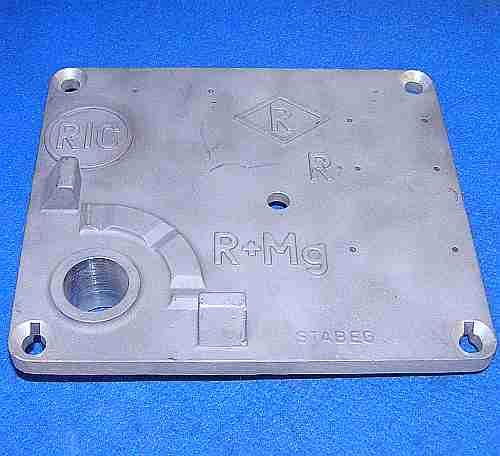

4	2	Schildlager	UV 40-17
5	2	Bushing	UV 23-12
7	2	Anschlagstift	UV 40-16/H
8	2	Federscheibe B12	FS B12
9	2	Hexagonal nut M12	SKM M12
10	6	Zahlenschild	10 665
13	2	Zahlenschild	UV 1-7
14	16	Blindniet 3.2x16	BN/Al 3.2x16
16	2	dowel	ZS Ø8h8x10

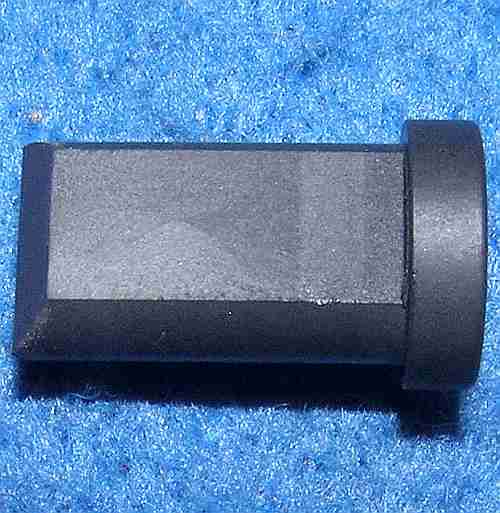

17	2	Rasterstift	UV 23-8
18	2	spring	UV 3-3
19	2	Sechskantschraube	UV 3-4
20	2	Federring B16	FR B16/vz
21	2	Spannstift	SPS 6x40

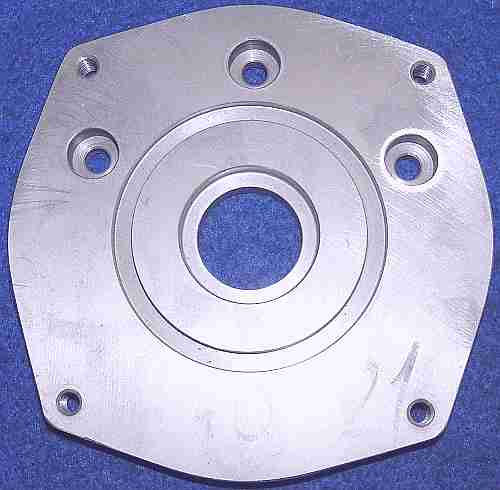

22	1	Montageplatte	UV 40-21
23	1	Montageplatte	UV 40-23
24	2	Ring	UV 40-3
25	6	cylinder head bolt	ZSR M6x20
26	14	Federscheibe B6	FS B6
27	4	O-Ring	OR
28	2	Welle	UV 40-7
29	3	Teleflex-Dose	UV 40-1
30	2	Lid	UV 40-4
31	8	Sechskantschraube	SKS M6x45
33	2	Deckscheibe	UV 40-8
34	1	Flexatrolschlauch	UV 40-9/1410
35	1	Flexatrolschlauch	UV 40-9/3610
36	1	Teleflexkabel	UV 40-10/5840
