spare parts for:

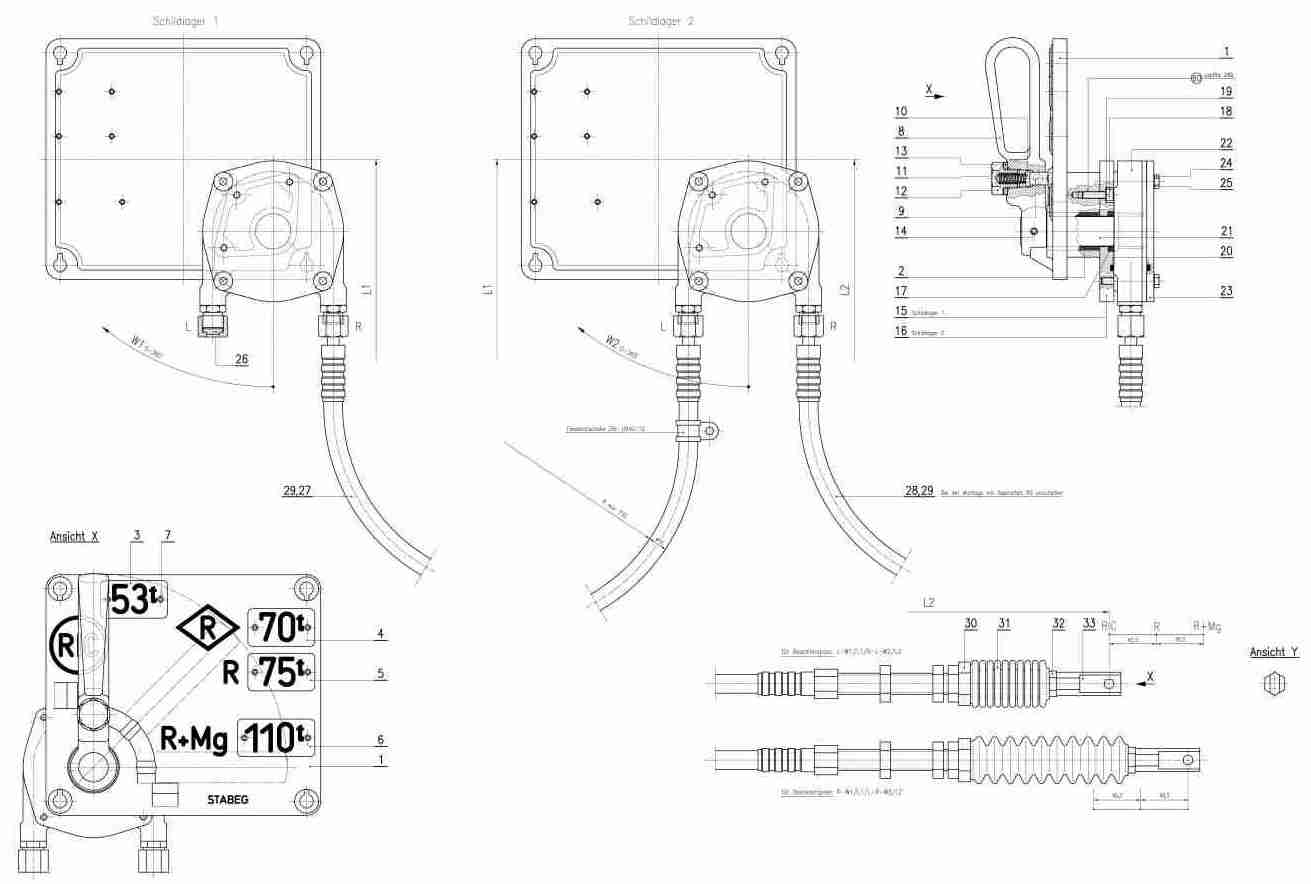

reversing device RIC-R-R+Mg

UV 50-002

N 027 065

- inquire spare part or device -


Click on drawing number for information about spare part

pos.	count	name	drawing number
0	4	O-Ring	OR
0	1	Griff komplett	UV 23-11/K
0	1	Flexatrolschelle	UV 40-12
0	1	Flexatrolschlauch	UV 40-13 - 8150mm
0	1	Teleflexkabel/Sickst	UV 40-14-12656mm
1	2	Schildlager RIC-R-R+Mg	UV 40-5
2	2	Bushing	UV 23-12
3	6	Zahlenschild	10 665
6	2	Zahlenschild	UV 1-7
7	16	Blindniet 3.2x16	BN/Al 3.2x16
8	1	Griff	UV 23-9
9	1	dowel	ZS Ø8h8x10
10	1	Rasterstift	UV 23-8
11	1	spring	UV 3-3
12	1	Sechskantschraube	UV 3-4
13	1	Federring B16	FR B16/vz
14	2	Spannstift	SPS 6x40

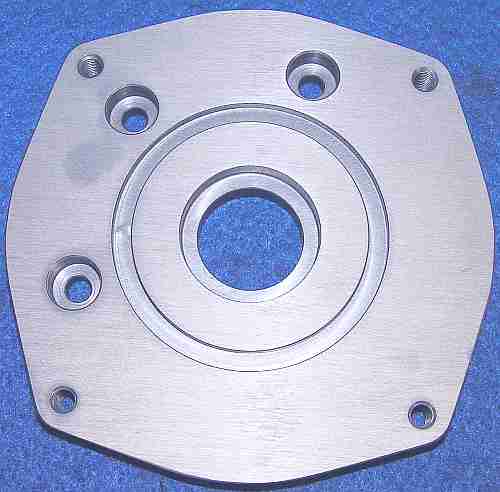

15	2	Montageplatte 90°	UV 40-2
17	2	Ring	UV 40-3
18	6	cylinder head bolt	ZSR M6x20
19	14	Federscheibe B6	FS B6
21	2	Welle	UV 40-7
22	2	Teleflex-Dose	UV 40-1
23	2	Lid	UV 40-4
24	8	Sechskantschraube	SKS M6x45
26	1	Deckscheibe	UV 40-8
27	1	Flexatrolschlauch	UV 40-9/3860
30	1	Mutter	UV 50-3
31	1	bellows	UV 50-4
32	1	Mutter	UV 50-5
33	1	Flachkopf	UV 40-15
